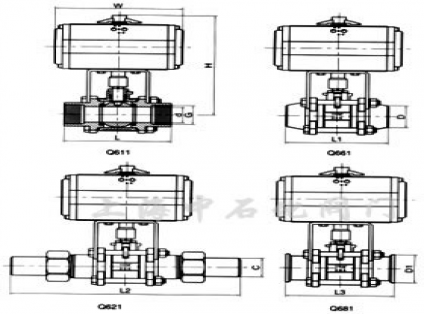

SMQ611F-16,25,40,64

通径DN

d

G

L

H

W

mm

In

8

1/4″

8

G1/4″

65

140

104

10

3/8″

10

G3/8

65

140

104

15

1/2″

15

G1/2

72

150

140

20

3/4

18

G3/4″

85

155

140

25

1″

24

G1″

91

165

140

32

1 1/2″

30

G1 1/4″

110

180

164

40

1 1/2″

38

G1 1/2″

122

190

164

50

2″

48

G2″

145

210

190

SMQ621F-16,25,40,64

通径DN

d

G

L2

H

W

mm

In

8

1/4″

8

14

120

140

104

10

3/8″

10

18

130

140

104

15

1/2″

15

22

140

150

140

20

3/4

18

28

160

155

140

25

1″

24

34

180

165

140

32

1 1/2″

30

42

200

180

164

40

1 1/2″

38

48

218

190

164

50

2″

48

60

235

210

190

SMQ661F-16,25,40,64

通径DN

d

G

L1

H

W

mm

In

8

1/4″

8

14.3

65

140

104

10

3/8″

10

18

65

140

104

15

1/2″

15

22

72

150

140

20

3/4

18

28

85

155

140

25

1″

24

34.5

91

165

140

32

1 1/2″

30

43.5

110

180

164

40

1 1/2″

38

49.5

122

190

164

50

2″

48

62

145

210

190

SMQ681F-16

通径DN

d

G

L3

H

W

mm

In

15

1/2″

15

34

108

150

140

20

3/4

18

50.5

118

155

140

25

1″

24

50.5

127

165

140

32

1 1/2″

30

50.5

146

180

164

40

1 1/2″

38

50.5

159

190

164

50

2″

48

64

191

210

190
